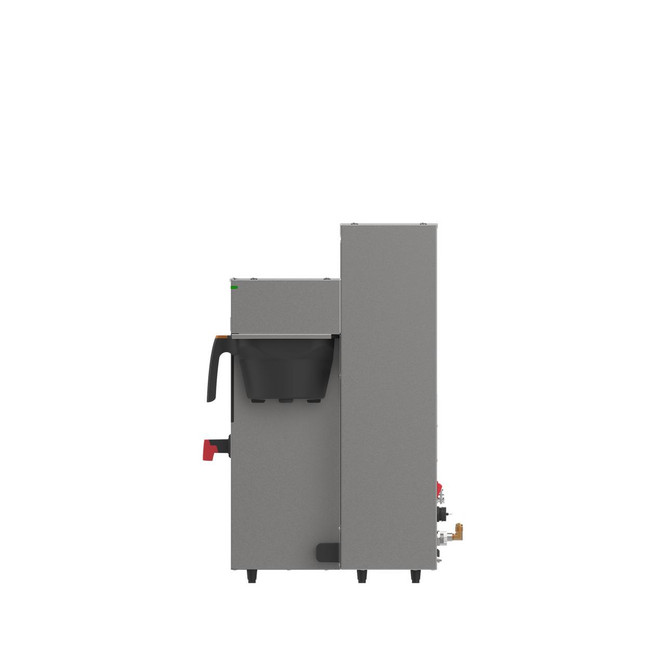

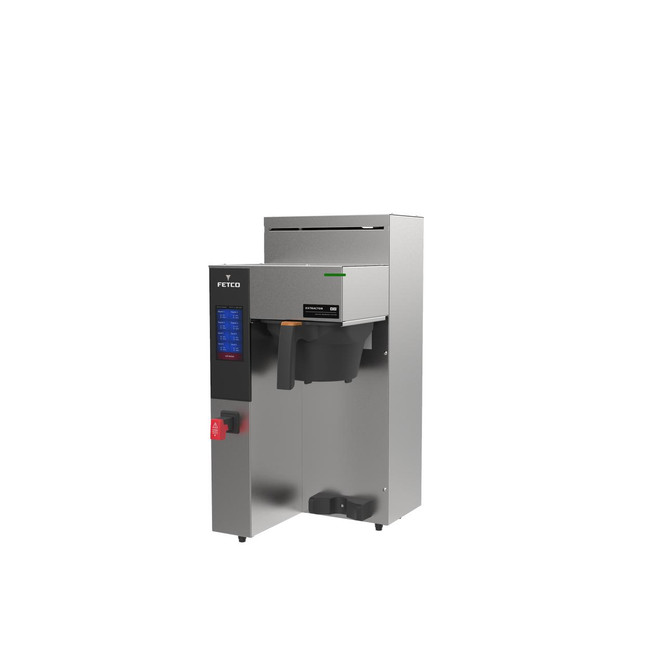

CBS-2231 NG Brewer - Single Station 1 Gallon

MSRP: $2,200.00 - $2,400.00
$1,280.99 - $1,389.99
Ships In 1-2 Weeks
  • Fetco CBS-2231 NG Brewer - Single Station 1 Gallon
  • Fetco CBS-2231 NG Brewer - Single Station 1 Gallon
  • Fetco CBS-2231 NG Brewer - Single Station 1 Gallon
  • Fetco CBS-2231 NG Brewer - Single Station 1 Gallon


The next generation of the XTS brewers are here in the new ‘NG’ series, otherwise known as the ‘Next Generation’ or ‘2200’ series’. The 2200 series brewers have been thoughtfully redesigned with a highly responsive touch screen that responds much like a smart phone. Compared to the XTS touch screens, this is a highly modernized screen with more intuitive functionality. These brewers include all the same brew variable controls as the XTS but include new features including an electrical lattice, front panel access for servicing, laser welded tanks for better durability and programmable water dispensing. The primary difference between the new Extractor Plus (1200 series) and the NG is the touch screen, the programmable hot water dispensing (vs spigot in the 1200), greater control over the frequency of brew pulses during a cycle (NG), a bypass valve that allows for bypass brewing (NG 2250 and 2260 series only), and a brew light indicator on the body that shows when the brewer is in mid cycle (NG). These updates are intended to improve durability and serviceability, and allow users to dial in coffee extraction more carefully.

These brewers come with the option of highly durable plastic baskets for optimal heat retention and cost savings, but stainless steel baskets are included in some variants and don’t need to be ordered separately. As the model number increases, so does the hourly brewing capacity and power. The fourth digit in the model number (like 2231 or 2232) indicates whether the model is a single station or dual station. Various voltage and wattage options are also available for each model to help accommodate power and capacity needs. Refer to the spec table at the bottom of the listing for more information about how each option is configured.

Before you get started you'll need a few accessories along with your new Fetco 2200 series brewer: Fetco F002 13"x5" Paper Filters, and either airpots or thermal dispensers for serving. We recommend the Fetco L4S-10 - Luxus Thermal Coffee Dispenser - 1 Gallon along with a serving stand, or either the Fetco d041 - 3.0 Liter Stainless Steel Lined Lever Airpot or the Fetco D063 - 1 Gallon Stainless Steel Lined Lever Airpot. For water treatment, we recommend the OptiPure SX2-21 Scale Inhibitor (1.5 gpm), or to ensure you get the best possible water treatment according to your water quality specs, an OptiPure Water Test Kit . To upgrade from a plastic brew basket, or to add another for prep, you can also order a Fetco B003218B1 13 in. x 5 in. Stainless Steel Brew Basket .

What's in the Box

  • Dispensers are sold separately!
  • Brewer, brew basket(s), legs, 3/8th male flare fitting adapter included in box
  • All 120 volt and dual volt (120/220) come with the 120 volt cord & plug end
  • All 208-240 volt units come without a cord/plug


  • NEW Highly responsive touch screen (like a phone)
  • NEW Programmable hot water dispenser
  • 3 liter or 4 liter brew capacity (configurable in menu)
  • Plastic or Stainless Steel baskets available
  • Bypass brewing options available (2250 and 2260 series only)
  • NEW Brew light indicator illuminates when brewer is mid cycle
  • Greater control over brew pulse frequency than 1200 series
  • Cascading Spray Dome for optimal flow and water distribution
  • Magnetic Brew Basket Sensor
  • NEW Riveted body construction vs. welded
  • Front panel access for easy servicing
  • NEW Laser welded steel boilers for improved durability
  • USB port for software updates
  • NEW Electrical Lattice
  • Airpots or Thermal Dispensers not included


Manufacturer: Fetco
Model: CBS-2231 NG Series Single Station Coffee Brewer
Height: 30 in
Width: 17 in
Depth: 22 in
Shipping Weight: 41 lbs
Tank Capacity: 3.00 Gallons

Fetco CBS-2231 NG Brewer Technical Specifications

Brewer SKU E2231US-1A115-PA011 E2231US-1A115-MA011 E2231US-1X117-PA011 E2231US-1X117-MA011
Voltage 120 120 120
Heater Config. 1 x 1.5 kW 1 x 1.5 kW
1 x 1.7 kW
2 x 1.7 kW
1 x 1.7 kW
2 x 1.7 kW
Phase 1 1 1 1
Wires 2+G 2+G
kW 1.5 1.5 1.7
Connection NEMA 5-15P NEMA 5-15P
NEMA 5-15P
Terminal Block
NEMA 5-15P
Terminal Block
Max Amp Draw 13 13 14.7
[Gal] / [L] Hour 4.0 / 15.1 4.0 / 15.1 4.5 / 17.1
7.9 / 30.0
4.5 / 17.1
7.9 / 30.0
Certification NSF / UL NSF / UL NSF / UL NSF / UL
Brew Basket Plastic
Metal Plastic
Hot Water Faucet Automatic Automatic Automatic Automatic
Brew Basket Locks Yes Yes Yes Yes
Bypass Brewing Capability No Yes No Yes
UX Touch Screen Touch Screen Touch Screen Touch Screen

Fetco CBS-2231 NG Water Requirements

Water Inlet 3/8" Male Flare
Water Pressure [psig] / [Bar] 20-75 / 1.37-5.17
Minimum Flow Rate [gpm] / [L/min] 1.50 / 5.68
Tank Capacity [Gal] / [L] 3.00 / 11.36
View AllClose

Warranty Information

Circuit Boards: 3 years parts and 1 year labor

Electromechanical parts: 2 years parts and 1 year labor

All other parts: 1 year parts and 1 year labor

Accessories and Dispensers: 1 year parts only (Airpot vacuum insulation – 1 year)

Dispenser Funnels: 1 year

Claim by phone: 1.800.338.2699
