Ditting KR804 Retail Coffee Grinder

$2,695.00
SKU:
kr804-ditti-pp
  • Ditting KR805 front view
  • Ditting KR805 angle view
  • Ditting KR805 side view
  • Ditting KR805 back view
  • Ditting KR805 side view 2
  • Ditting KR805 angle view 2
  • Ditting KR805 Modified front view
  • Ditting KR805 Modified angle view
  • Ditting KR805 Modified side view
  • Ditting KR805 Modified back view
  • Ditting KR805 Modified side view 2
  • Ditting KR805 Modified angle view 2

Description

  • What's in the Box

  • Ditting K804 Lab Grinder and Hopper
  • Grounds Tray (not included with modified model)
  • Manual

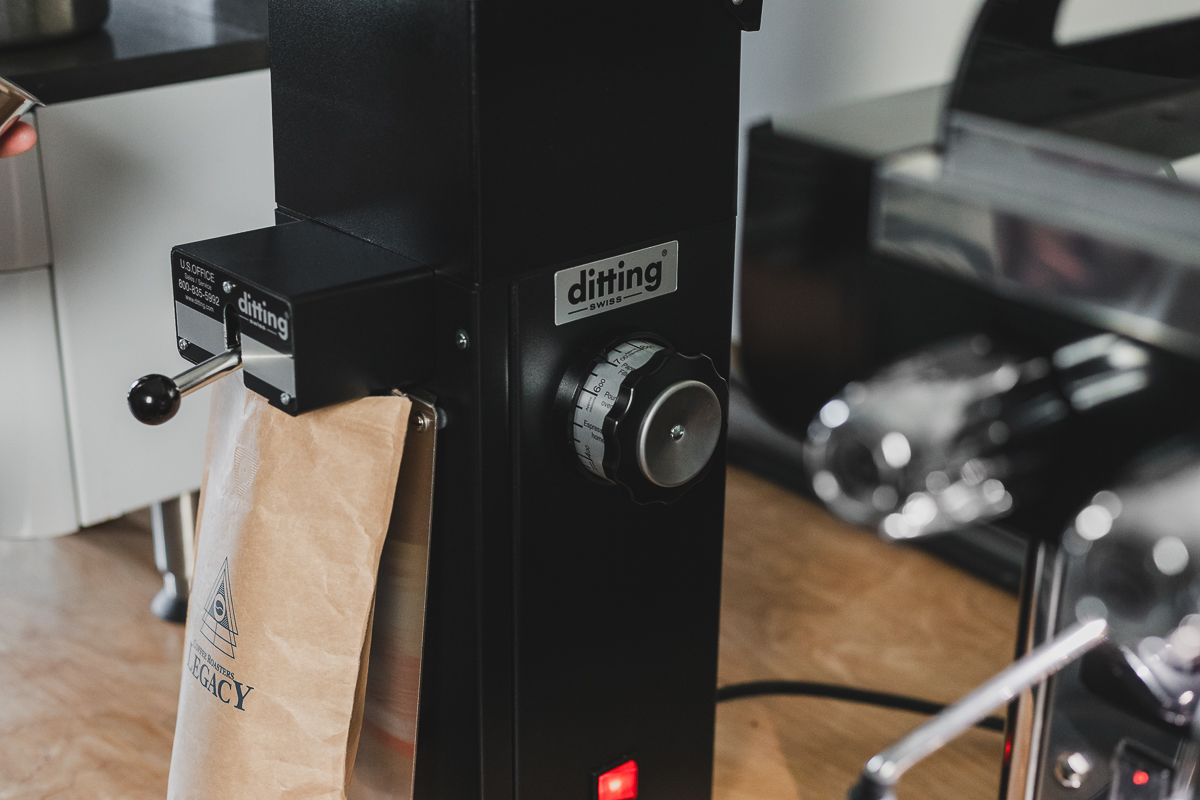

Close up on Ditting KR804 grinder

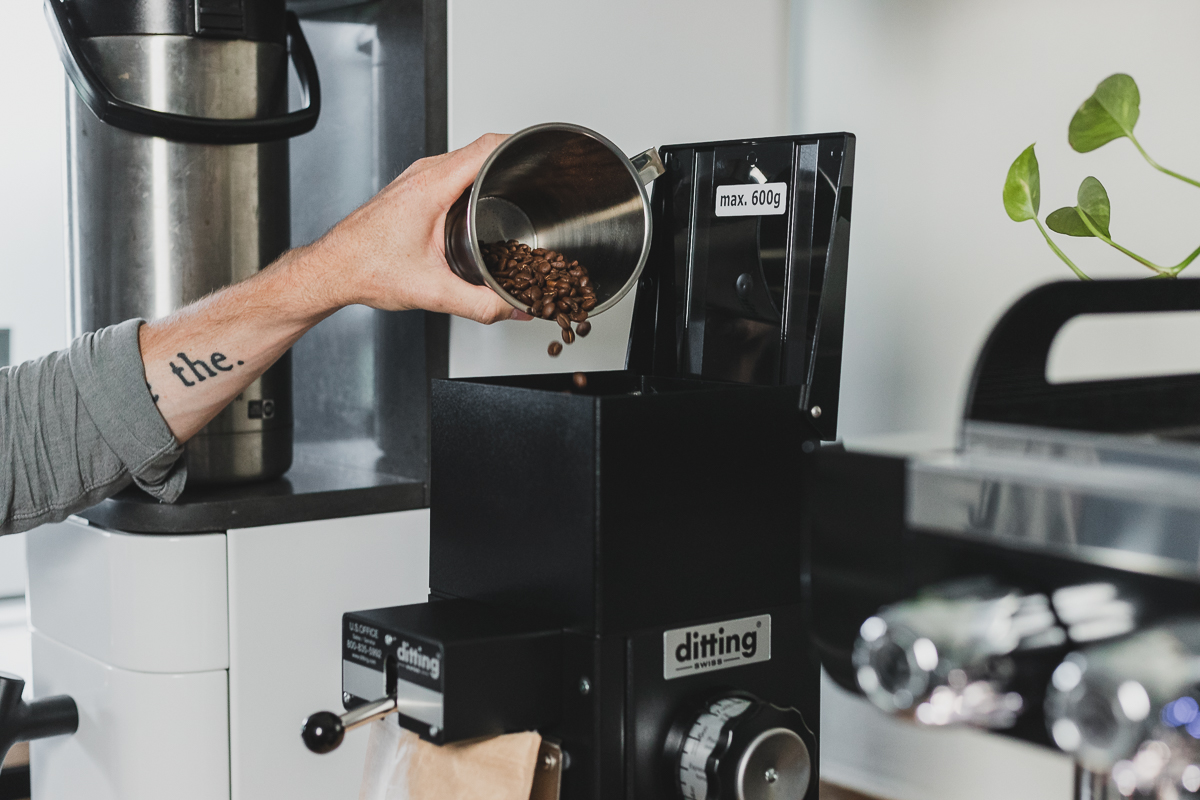

Loading a hopper

A Trusted Grinder

Trusted by cafés, roasteries, and retail stores across the world, the KR804 is the faithful flagship grinder of the Ditting line. At heart, the KR804 is a high-performance retail bag grinder optimized for a full range of grind sizes (from Turkish to cold brew), featuring a sturdy, spring-loaded bag clamp to hold coffee bags and vibrating steel shaker plate to settle the grounds as they fall. On the modified model, the vibration plate is replaced with a non-vibrating stationary plate designed to accommodate a range of receptacles, including single-dose grounds containers, bins, or bags.

Grinding coffee into a Ditting container

Versatile

The 804’s 80mm tool steel burrs (rated for 15,000 lbs.) are celebrated for producing cups of balance, clarity, and sweetness across the full grind range and are thus an improvement on many of the popular retail grinders on the market. The KR804 can easily handle the workload of specialty coffee shops, grinding for batch brewing, pour overs, and, due to its stepless adjustment, even espresso, but because of its attached plate, it is often used primarily to grind into retail bags for customers. The 804s are also incredibly speedy. The 500-watt motor rotates the burrs at 1650 RPM to grind an impressive 2lbs per minute at 800 microns, up to about 30 pounds per day, which is plenty enough for most cafés.

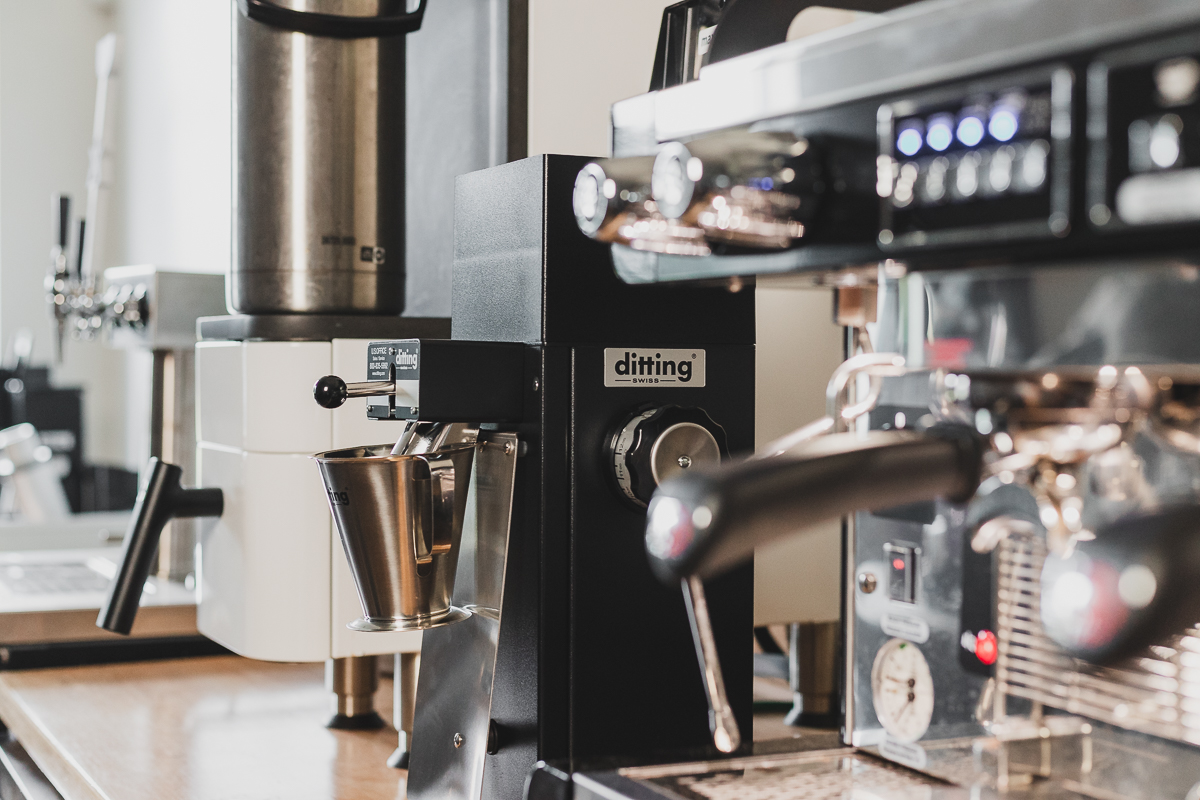

Ditting KR804 on bar at a café

A Perfect Fit

For all its power and capabilities, the Ditting KR804 has a surprisingly compact, unassuming frame which is why it is the most ubiquitous grinder you may have never seen. It is just 19-inches high (a height that includes the built-in hopper), 8-inches wide, and 10.25-inches deep—and an equally surprising heft—50 pounds—, a weight doubtless attributable to the heavy metal components (all the way down to the retention knocker and fan blades) and very little plastic (only the lid and adjustment dial). Its dimensions and weight, in combination with its compact footprint, make the KR804 the perfect fit for nearly every commercial space, from the shallow or crowded countertops to those narrow windows between equipment. The KR804 is an easy addition to any café, retail setting or roastery.

  • ICON_ALT

    80mm Flat Burrs

  • ICON_ALT

    Stepless Grind Adjustment

  • ICON_ALT

    Grind Quality

  • ICON_ALT

    Versatile

More Features

Turkish to Cold Brew

Shaker Plate Option

Spring-Loaded Chute Knocker

Minimal Retention

Stationary Plate Option

Specifications

Burr Material: Tool Steel
Burr Size: 80mm
Burr Life: 15,000 lbs.
Average Grind Speed: 2lbs per minute at 800 microns (setting 8)
Hopper Capacity: 500g
RPM: 1650
Motor: 500 W / 0.65 hp
Dimensions: 7.87 in. (W) × 18.89 in. (H) × 10.23 in. (D)
Weight: 48 lbs.

Ditting Grinder Comparison Chart

Model: KR804 Standard KR804 Modified K804 Lab KR1203 KR1403 KFA1403 KF1800
Application: Retail bag grinding, up to 30lbs per day Retail bag grinding and single dosing, up to 30lbs per day Single dosing for cupping, pour over or espresso, up to 30lbs per day. Retail bag grinding, up to 60lbs per day Retail bag grinding, up to 100lbs per day Roasting areas, up to 100lbs per day. Industrial scale grinding, 100lbs+ per day
Hardware: Vibrating plate Non-vibrating plate Folding platform, metal grounds catch Vibrating plate Vibrating plate Extended chute, slide gate Extended chute, slide gate
Grind Size Range: 170µm-1,300µm 170µm-1,300µm 100µm-1,200µm 300µm-900µm 200µm-1,100µm 200µm-1,100µm 180µm-1,400µm
Output (lbs/min/800µm): 2 2 2 5 8 8 12
Burr Lifespan (lbs): 15,000 15,000 15,000 25,000 35,000 35,000 100,000
Hopper Capacity (lbs): 1.1 1.1 1.1 2.4 2.4 22 66
Duty Cylcle: 45 Sec On/180 Sec Off 45 Sec On/180 Sec Off 45 Sec On/180 Sec Off Continuous run Continuous run Continuous run Continuous run
Volts: 120v, 60hz, Single Phase 120v, 60hz, Single Phase 120v, 60hz, Single Phase 120v, 60hz, Single Phase 220v, 60hz, Three Phase 220v, 60hz, Three Phase 220v, 60hz, Three Phase
Amps: 6 6 6 13 10 10 19.5
Dimensions WxHxD (inches): 9.5 x 13 x 25 9.5 x 13 x 25 9.5 x 13 x 25 12.5 x 16 x 34 12.5 x 16 x 34 13.5 x 16 x 37 20 x 20 x 65
